Godines et al. 2025

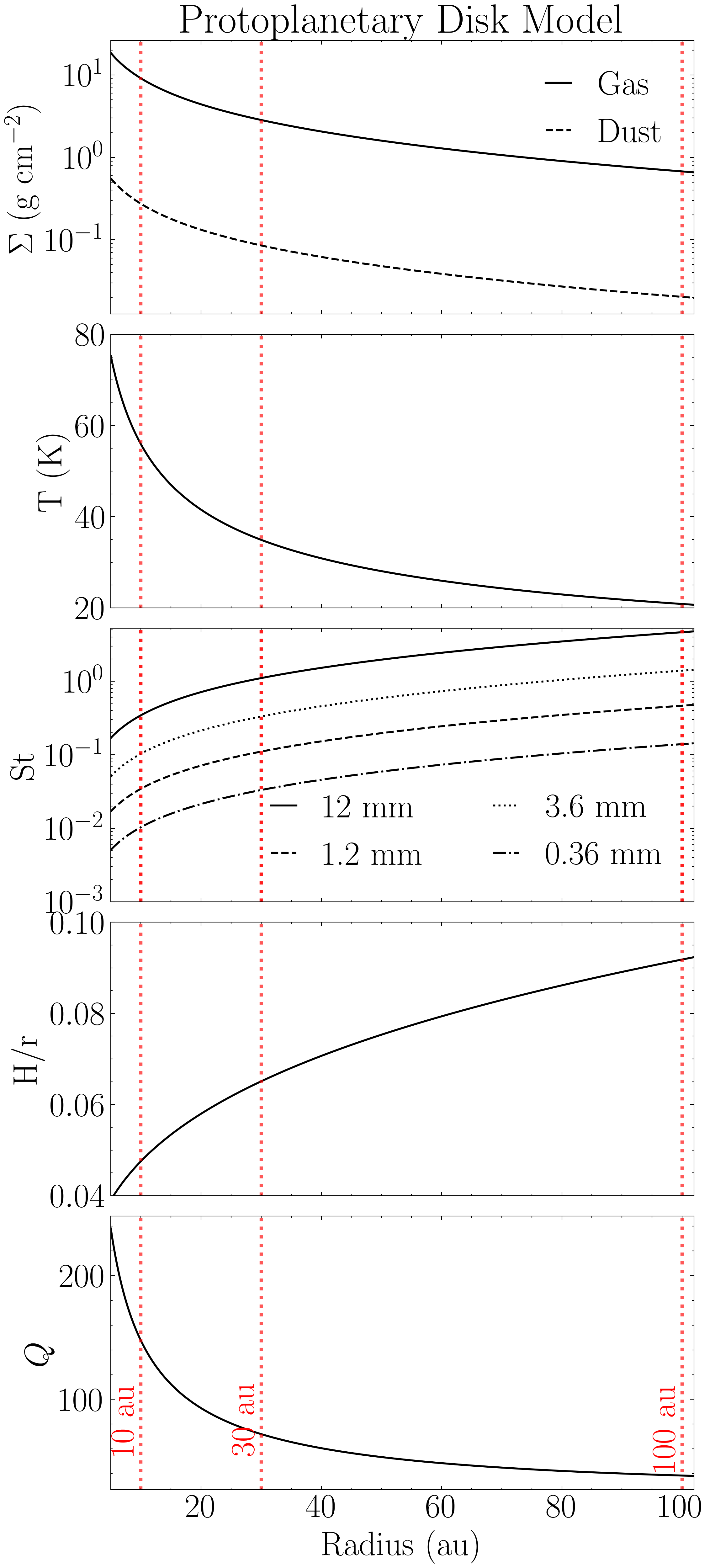

Figure 1 - Disk Model

The following code shows how we set up our disk model using the disk_model module. This model was used to configure the simulations, including the calculation of the stokes numbers, pressure gradient parameter and strength of the self-gravity at the three different disk locations. Note that the Model class object containts the get_params method which prints the calculated disk parameters.

import numpy as  np
import matplotlib.pyplot as plt
import astropy.constants as const
from protoRT import disk_model

try:
    import scienceplots
    plt.style.use('science')
    plt.rcParams.update({'font.size': 26,})
    plt.rcParams.update({'lines.linewidth': 1.5})
except:
    print('WARNING: Could not import scienceplots, please install via pip for proper figure formatting.')
    plt.style.use('default')

# Mass of the star
M_star = const.M_sun.cgs.value

# Mass of the protoplanetary disk
M_disk = 0.02*const.M_sun.cgs.value

# Radii which to model, and the characteristic radius of the disk (in [au])
r, r_c = np.arange(5,110.25,0.25), 300

# Convert to cgs units
r, r_c = r*const.au.cgs.value, r_c*const.au.cgs.value


## Disk model adopted in this work (Section 2.1 of the paper) ##
## Used to convert our multi-species simulations with self-gravity from code units to physical units (cgs) ###

# Internal dust grain density (from DSHARP dust model)
grain_rho = 1.675

# Dust to gas ratio (Equation 11)
Z = 0.03

# Temperature power law index (Equation 2)
q = 3/7.

# Temperature at r = 1 au (Equation 2)
T0 = 150

# The sizes of the four dust grains in our simulations
grain_sizes = np.array([1.194, 0.3582, 0.1194, 0.03582])

# The Model class in the disk_model module only works with one grain size, so we define four unique models
# All other model parameteres are the same so these models only differ in their respective Stokes number
model_2a = disk_model.Model(r, r_c, M_star, M_disk, grain_rho=grain_rho, grain_size=grain_sizes[0], Z=Z, stoke=None, q=q, T0=T0)
model_2b = disk_model.Model(r, r_c, M_star, M_disk, grain_rho=grain_rho, grain_size=grain_sizes[1], Z=Z, stoke=None, q=q, T0=T0)
model_2c = disk_model.Model(r, r_c, M_star, M_disk, grain_rho=grain_rho, grain_size=grain_sizes[2], Z=Z, stoke=None, q=q, T0=T0)
model_2d = disk_model.Model(r, r_c, M_star, M_disk, grain_rho=grain_rho, grain_size=grain_sizes[3], Z=Z, stoke=None, q=q, T0=T0)

# Plot
fig, axes = plt.subplots(nrows=5, ncols=1, figsize=(8, 20), sharex=True)
fig.subplots_adjust(hspace=0.075)

# Plot 1: Surface Density
axes[0].plot(model_2a.r / const.au.cgs.value, model_2a.sigma_g, c='k', linestyle='-', label='Gas')
axes[0].plot(model_2a.r / const.au.cgs.value, model_2a.sigma_d, c='k', linestyle='--', label='Dust')
axes[0].set_ylabel(r'$\Sigma$ (g cm$^{-2}$)')
axes[0].set_yscale('log')
axes[0].legend(frameon=False, loc='upper right', handlelength=0.75)
axes[0].set_title('Protoplanetary Disk Model')

# Plot 2: Temperature
axes[1].plot(model_2a.r / const.au.cgs.value, model_2a.T, c='k', linestyle='-')
axes[1].set_ylabel(r'T (K)')
axes[1].set_ylim((20,80))

# Plot 3: Stokes Number
axes[2].plot(model_2a.r / const.au.cgs.value, model_2a.stoke, c='k', linestyle='-', label='12 mm')
axes[2].plot(model_2c.r / const.au.cgs.value, model_2c.stoke, c='k', linestyle='--', label='1.2 mm')
axes[2].plot(model_2b.r / const.au.cgs.value, model_2b.stoke, c='k', linestyle=':', label='3.6 mm')
axes[2].plot(model_2d.r / const.au.cgs.value, model_2d.stoke, c='k', linestyle='-.', label='0.36 mm')
axes[2].set_ylabel('St'); axes[2].set_yscale('log')
axes[2].set_ylim((0.001, 5.25))

# Add vertical lines
axes[2].axvline(x=10, linestyle=':', linewidth=2.5, color='red', alpha=0.65)
axes[2].axvline(x=30, linestyle=':', linewidth=2.5, color='red', alpha=0.65)
axes[2].axvline(x=100, linestyle=':', linewidth=2.5, color='red', alpha=0.65)
legend = axes[2].legend(loc='lower right', handlelength=0.75, ncol=2)

# Plot 4: Scale Height
axes[3].plot(model_2a.r / const.au.cgs.value, model_2a.h, c='k', linestyle='-')
axes[3].set_ylabel(r'H/r')
axes[3].set_ylim((0.04, 0.1))

# Plot 5: Toomre Q Parameter
axes[4].plot(model_2a.r / const.au.cgs.value, model_2a.Q, c='k', linestyle='-')
axes[4].set_ylabel(r'$Q$'); axes[4].set_xlabel('Radius (au)')

# X-axis formatting (hiding x-tick labels for all but the bottom plot)
for ax in axes:
    ax.set_xlim(5., 102.)
    ax.label_outer()

# Add the vertical red dashed lines to denote location of our three simulations
for i in range(5):
    axes[i].axvline(x=10, linestyle=':', linewidth=2.5, color='red', alpha=0.65)
    axes[i].axvline(x=30, linestyle=':', linewidth=2.5, color='red', alpha=0.65)
    axes[i].axvline(x=100, linestyle=':', linewidth=2.5, color='red', alpha=0.65)

# Add vertical text labels aligned with the lines (only lower plot)
axes[4].text(10., 114.037, '10 au', color='red', rotation=90, verticalalignment='top', horizontalalignment='right')
axes[4].text(30., 114.037, '30 au', color='red', rotation=90, verticalalignment='top', horizontalalignment='right')
axes[4].text(100., 114.037, '100 au', color='red', rotation=90, verticalalignment='top', horizontalalignment='right')

# Save
plt.savefig('Disk_Model_SelfGravity_OneColumn.png', dpi=300, bbox_inches='tight')
plt.show()

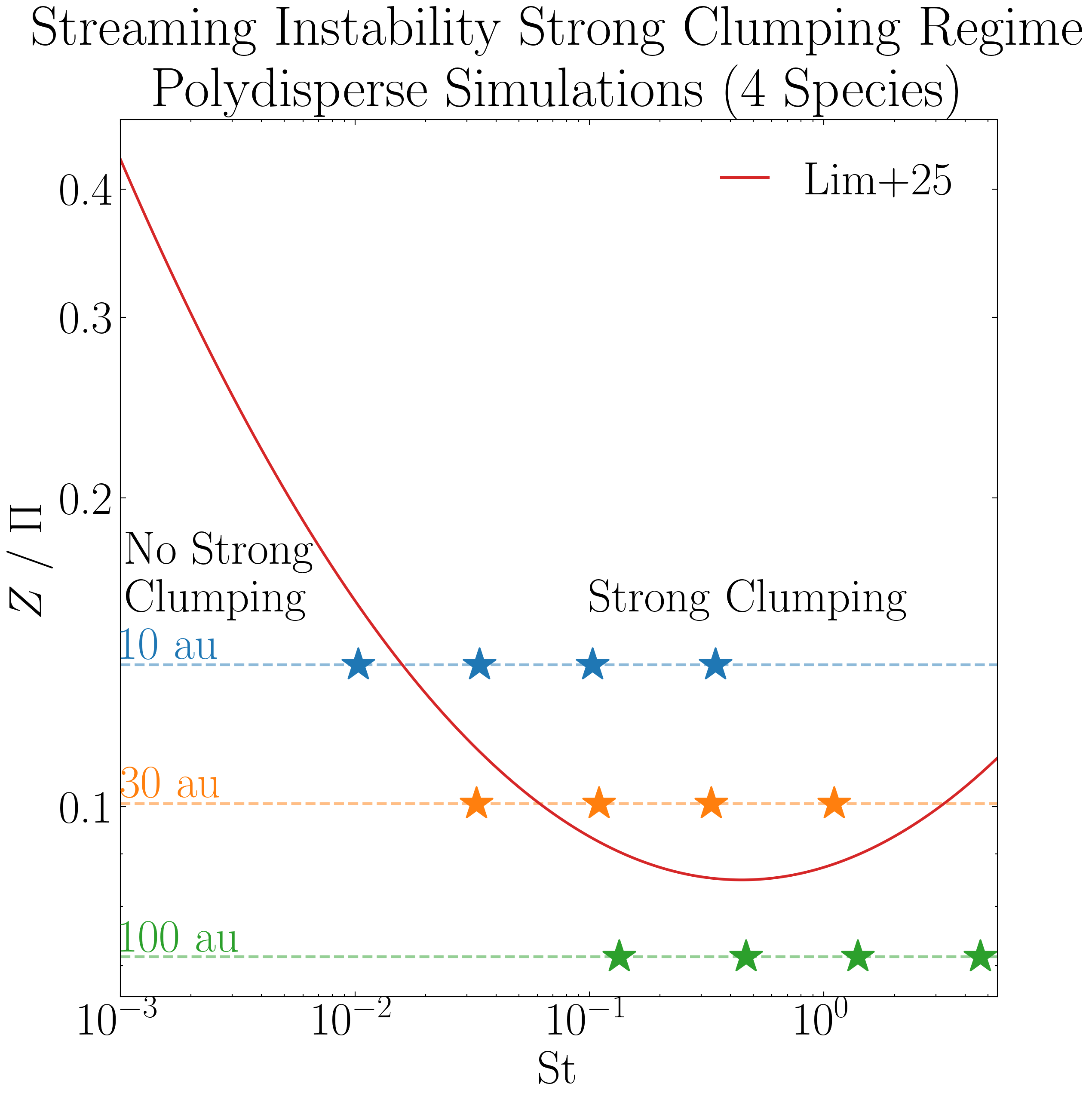

Figure 2 - SI Strong Clumping Regime

The following plot overlays the four species in our simulations, which evolve largely independently, on the strong clumping boundary for the streaming instability, as reported by Lim et al 2025.

import numpy as np
import matplotlib.pyplot as plt

try:
    import scienceplots
    plt.style.use('science')
    plt.rcParams.update({'font.size': 26,})
    plt.rcParams.update({'lines.linewidth': 1.5})
except:
    print('WARNING: Could not import scienceplots, please install via pip for proper figure formatting.')
    plt.style.use('default')


plt.figure(figsize=(8,8))

# Simulation parameters, stokes numbers and pressure gradient parameter
st10 = np.array([0.345, 0.103, 0.034, 0.0103])
st30 = np.array([1.105, 0.331, 0.110, 0.033])
st100 = np.array([4.651, 1.395, 0.465, 0.134])
Pi = np.array([0.0545, 0.0745, 0.105])

# The initial dust-to-gas ratio in our simulations (Equation 11)
Total_Z = 0.03

# In our simulations with four grain sizes and Z=0.03, the species act indepedent of one another (see Krapp et al. 2019)
Collective_Z = 0.03 / 4.

# The critical parameter adoped in this work (Z/Pi)
ratio_collective = Collective_Z / (Pi)

# Plot where the four species in each of the three simulations fall within this boundary
plt.scatter(st10, [ratio_collective[0]]*4, marker='*', facecolor='#1f77b4', s=350, edgecolor='#1f77b4')
plt.scatter(st30, [ratio_collective[1]]*4, marker='*', facecolor='#ff7f0e', s=350, edgecolor='#ff7f0e')
plt.scatter(st100, [ratio_collective[2]]*4, marker='*', facecolor='#2ca02c', s=350, edgecolor='#2ca02c')

# Adding horizontal dashed lines and text to denote where each simulation is in the disk
plt.axhline(y = ratio_collective[0], linestyle='--', color='#1f77b4', alpha=0.5)
plt.text(0.001, ratio_collective[0]+0.0017, "10 au", color='#1f77b4', fontweight="bold")

plt.axhline(y = ratio_collective[1], linestyle='--', color='#ff7f0e', alpha=0.5)
plt.text(0.001, ratio_collective[1]+0.0014, "30 au", color='#ff7f0e', fontweight="bold")

plt.axhline(y = ratio_collective[2], linestyle='--', color='#2ca02c', alpha=0.5)
plt.text(0.001, ratio_collective[2]+0.0008, "100 au", color='#2ca02c', fontweight="bold")

# Now plot the Li+25 boundary
# Stokes numbers to plot (x-axis)
x = np.arange(-3, 0.74037, 0.01)
St = 10 ** x

# Boundary parameters
Pi_ = 0.05
A = 0.10
B = 0.07
C = -2.36
C = C - np.log10(Pi_) # To show Z / Pi.

# Plot the critical boundary
Zcrit_array = (A * np.log10(St)**2) + (B * np.log10(St)) + C
Zcrit_array = 10 ** Zcrit_array
plt.loglog(St, Zcrit_array, color='#d62728', label="Lim+25")

# Label the clumping regions
plt.title('Streaming Instability Strong Clumping Regime\nPolydisperse Simulations (4 Species)')
plt.text(0.1, 0.155, "Strong Clumping", fontweight="bold")
plt.text(0.00105, 0.155, "No Strong\nClumping", fontweight="bold")
plt.xlabel("St"); plt.ylabel(r"$Z \ / \ \Pi$")
plt.yticks([0.1, 0.2, 0.3, 0.4], [str(y) for y in [0.1, 0.2, 0.3, 0.4]])
plt.xlim(1e-3, 5.5)

# Save
plt.legend(ncol=1, loc='upper right', handlelength=1)
plt.subplots_adjust(top=0.97, right=0.97, left=0.12, bottom=0.12)
plt.savefig('SI_criteria_Independent.png', dpi=300, bbox_inches='tight')
plt.show()

Radiative Transfer Analysis

The main analysis is shown below, during which all the relevant files are saved. These include the key results from the radiative transfer such as the mass excess and filling factor, as well as the 2D optical depth and corresponding intensity maps.

Simulation-based data is also saved, including the mass of the planetesimals as well as number of superparticles and the per-species maximum particle density over time.

This code was run 24 times – 4 ALMA bands x 3 disk locations x 2 opacity options (absorption only and absorption + scattering).

The saved data from this analysis has been made available for download here (14 GB untarred) . This is the path_to_save variable in the code.

We have also made available for download the simulation data from the Pencil Code, which have been saved as .npy and .txt files to facilitate data-transfer. These files are needed for this analysis (the path_to_data variable below).

Download the simulation data here:

10 au simulation (5.11 GB, 25 GB untarred).

30 au simulation (6.02 GB, 25 GB untarred).

100 au simulation (7.61 GB, 29 GB untarred).

from protoRT import rtcube, disk_model
import astropy.constants as const
import matplotlib.pyplot as plt
import numpy as np


# The four ALMA wavelenghts (Bands 10, 7, 6, and 3)
alma_wavelengths_cm = [0.03, 0.087, 0.13, 0.3]

###
### THESE ARE THE THREE VARIABLES THAT ARE CHANGED! Observed Frequency (band index), Scattering Option (True/False), and Disk Location (10, 30, & 100) ###
###

# The index for the band that is being analyzed (indexes alma_wavelengths_cm list)
band = 0

# Whether to include scattering
include_scattering = True

# The location in the disk to be analyzed
r_ = 10

###
### Everything below is fixed
###

# The same disk model parameters from Fig. 1
# These are used to extract the corresponding disk params (sigma_g, T, & H) which are used to configure the cube for the radiative transfer
mass_disk = 0.02
M_star, M_disk = const.M_sun.cgs.value, mass_disk*const.M_sun.cgs.value
r, r_c = r_*const.au.cgs.value, 300*const.au.cgs.value
grain_rho = np.array([1.675, 1.675, 1.675, 1.675])
Z = 0.03
q = 3/7.
T0 = 150

# Define the disk model as the Sigma_g, T, and H are needed. NOTE: These parameters are independent of grain size/stokes number so not input needed
model = disk_model.Model(r, r_c, M_star, M_disk, Z=Z, q=q, T0=T0)

# The Stokes numbers used in the simulations which correspond to the disk model in Fig. 1
if r_ == 10:
        stoke = np.array([0.34454218, 0.10336265, 0.03445422, 0.01033627])
elif r_ == 30:
        stoke = np.array([1.10488383,0.33146515,0.11048838,0.03314651])
elif r_ == 100:
        stoke = np.array([4.65083295,1.39524989,0.4650833,0.13952499])
else:
        print('Invalid disk position! Options are: 10, 30, and 100')

# The paths to the Pencil Code data
save_dir = 'scattering' if include_scattering else 'absorption'
path_to_data = f'pencil_data_{r_}au/'

# Directory where analysis results will be saved
path_to_save = f'analysis/polydisperse/band{int(band+1)}/{save_dir}/{r_}au/'

# Normalization parameters used in the simulation set up
code_omega = 1
code_cs = 1
code_rho = 1

# Power law index for grain size distribution
p = 2.5

# Number of superparticles in the simulations
npar = 1000000

n_orbits = 101 # Number of snapshots saved

# The initial conditions are loaded and stored before the analysis begins
# This mass is used when computing the mass excess at all orbits as planetesimal formation removes available mass over time
init_var = np.load(path_to_data+'var_files/VAR0.npy')

# Empty lists to store quantities of interest, will be saved once all snapshots are analyzed
# These are the maximum particle densities (per scecies) which can be calculated from the
# density field that is made during the analysis. This density field (4D array) is too large to
# save for all orbits so this data is saved during analysis instead.  These are independent of the radiative transfer
max_rho_per_species = np.zeros((n_orbits, len(stoke))) # 101 Snapshots, 4 grain sizes

# Will also save the number of species in the domain over time (i.e., those not in sink particles)
num_particles = np.zeros((n_orbits, len(stoke)))

for var in np.arange(0, n_orbits, 1):
        print(f'Orbit {var} out of {n_orbits}')
        # Data cube (rhop) and z-axis (in units of H) from Pencil Code
        data_cube = np.load(path_to_data+'var_files/VAR'+str(var)+'.npy')
        axis = np.loadtxt(path_to_data+'axis.txt')
        #
        # Particle data from Pencil code
        aps = np.loadtxt(path_to_data+'aps_files/aps'+str(var)+'.txt')
        rhopswarm = np.loadtxt(path_to_data+'rhopswarm_files/rhopswarm'+str(var)+'.txt')
        particle_data = np.loadtxt(path_to_data+'ipars_positions_files/ipars_positions_'+str(var)+'.txt')
        ipars, species, positions_x, positions_y, positions_z = particle_data[:,0].astype(int), particle_data[:,1].astype(int), particle_data[:,2], particle_data[:,3], particle_data[:,4]
        #
        # Grid data from Pencil Code
        grid_data = np.loadtxt(path_to_data+'grid_xyz_polysg.txt')
        xgrid, ygrid, zgrid = grid_data[:,0], grid_data[:,1], grid_data[:,2]
        #
        # These are the attributes Pencil Code stores in read_param(), needed for our polydisperse analysis
        p2d_params = np.loadtxt(f'{path_to_data}/p2d_params_polysg.txt', dtype=str)
        #
        grid_func1, grid_func2, grid_func3 = p2d_params[0], p2d_params[1], p2d_params[2]
        particle_weight = float(p2d_params[3])
        mx, my, mz = int(p2d_params[4]), int(p2d_params[5]), int(p2d_params[6])
        nx, ny, nz = int(p2d_params[7]), int(p2d_params[8]), int(p2d_params[9])
        n1, n2, m1, m2, l1, l2 = int(p2d_params[10]), int(p2d_params[11]), int(p2d_params[12]), int(p2d_params[13]), int(p2d_params[14]), int(p2d_params[15])
        #
        # Run the main RT routine
        cube = rtcube.RadiativeTransferCube(
                data=data_cube,
                axis=axis,
                code_rho=code_rho,
                code_cs=code_cs,
                code_omega=code_omega,
                column_density=model.sigma_g,
                T=model.T,
                H=model.H,
                stoke=stoke,
                grain_rho=grain_rho,
                wavelength=alma_wavelengths_cm[band],
                include_scattering=include_scattering,
                kappa=None,
                sigma=None,
                p=p,
                npar=npar,
                ipars=ipars,
                xp=positions_x,
                yp=positions_y,
                zp=positions_z,
                xgrid=xgrid, # Same length as mx
                ygrid=ygrid, # Same length as my
                zgrid=zgrid, # Same length as mz
                rhopswarm=rhopswarm,
                particle_weight=particle_weight,
                grid_func=grid_func1, #Code assumes that grid_func1 = grid_func2 = grid_func3
                num_grid_points=mx, # Code assumes that mx = my = mz
                num_interp_points=nx, # Code assumes that nx = ny = nz
                index_limits_1=n1, # Code assumes that n1 = m1 = l1
                index_limits_2=n2, # Code assumes that n2 = m2 = l2
                aps=aps,
                eps_dtog=Z,
                init_var=init_var
                )
        #
        cube.configure()
        #
        # Calculate the max particle density per species
        for i in range(len(stoke)): max_rho_per_species[var, i] = np.max(cube.density_per_species[i])
        #
        # Convert the ipars array to numerical labels, first species is 1, second is 2, etc...
        _species_ = np.ceil(ipars / (npar / len(stoke)))
        for i in range(len(stoke)): num_particles[var, i] = len(np.where(_species_ == i+1)[0])
        #
        # Save the key RT results and data parameters (mass excess, filling factor, unit density, cube mass, and mass for each present planetesimal)
        np.savetxt(path_to_save+f'cube_results_var_{var}.txt', np.r_[cube.mass_excess, cube.filling_factor, cube.unit_density, cube.mass, cube.proto_mass], header='Mass Excess | Filling Factor | Unit Density | Cube Mass | Planet Mass')
        #
        # Save the two-dimensional optical depth and intensity maps
        np.save(path_to_save+f'tau_intensity_{var}.npy', np.array([cube.tau, cube.intensity]))

# The particle evolution data is independent of the radiative transfer therefore will be saved on the main directory, only one per location needed
# Save the maximum particle densities over time, shown in first row of Fig. 3
np.savetxt(path_to_save[:9]+f'max_densities_{r_}au.txt', max_rho_per_species)

# Save the number of particles over time, shown in second row of Fig. 3
np.savetxt(path_to_save[:9]+f'num_species_{r_}au.txt', num_particles)

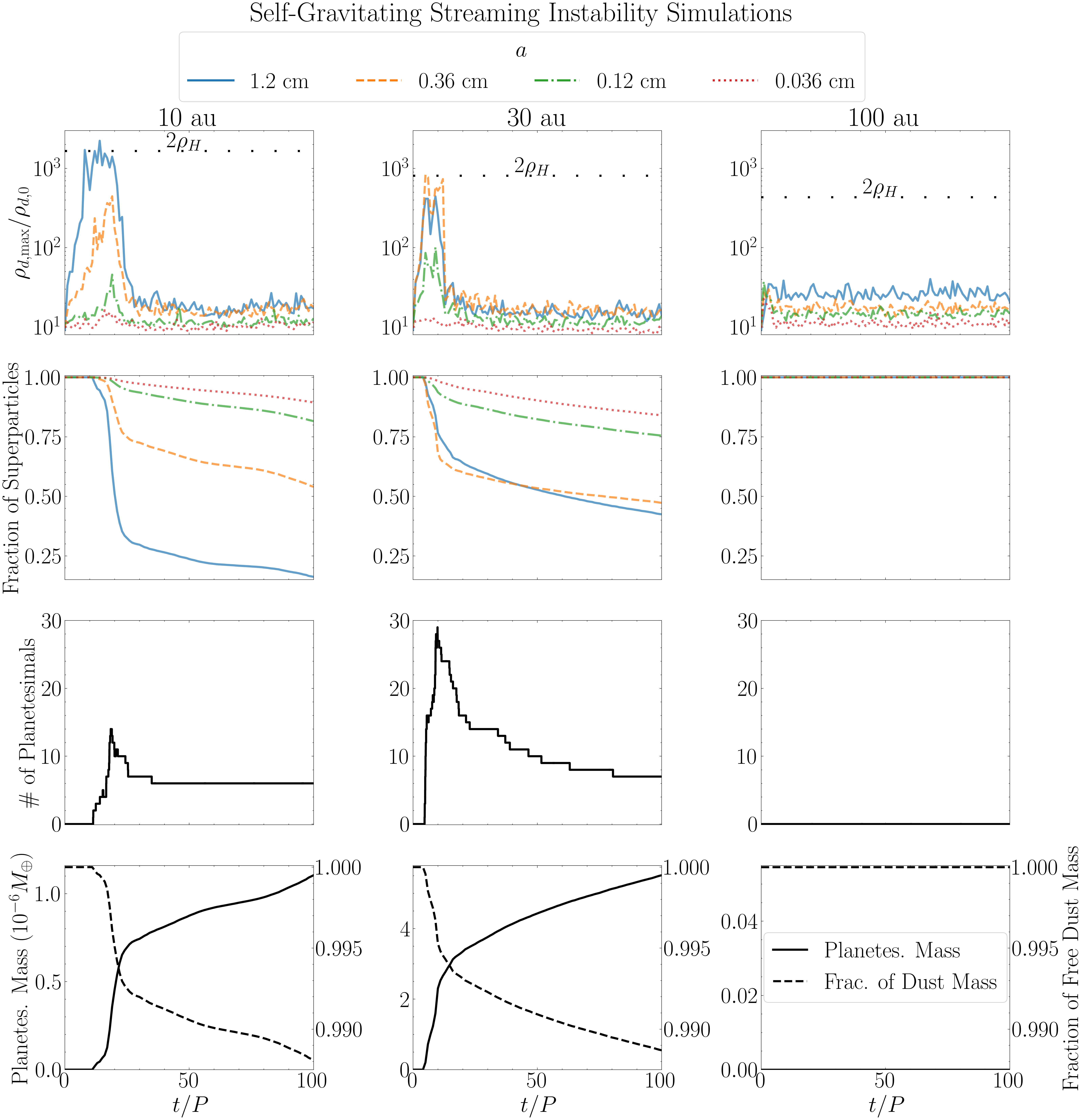

Figure 3 - Simulations

The following code shows the time evolution of the three simulations. This uses the analysis results saved above and the time series dataframe provided in the simulation data.

import os
import re
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
import pandas as pd
import astropy.constants as const

try:
    import scienceplots
    plt.style.use('science')
    plt.rcParams.update({'font.size': 32, 'lines.linewidth': 3.0})
except:
    print('WARNING: Could not import scienceplots, please install via pip for proper figure formatting.')
    plt.style.use('default')


# Function for loading the cube results in order (var 0 to 101)
def extract_number(fname):
    return int(re.search(r'\d+', fname).group())

# Function to extract the cube mass and planetesimal masses from the saved results
def load_mass_data(path):
    files = sorted([f for f in os.listdir(path) if 'cube_results' in f], key=extract_number)
    proto_mass, cube_mass = [], []
    for f in files:
        data = np.loadtxt(os.path.join(path, f))
        proto_mass.append(np.sum(data[4:]))
        cube_mass.append(data[3])
    return np.array(proto_mass), np.array(cube_mass)

# Function to load the time series dataframe (from the Pencil Code)
def load_time_series(filepath):
    columns = ['it', 't', 'dt', 'nparmax', 'ux2m', 'uy2m', 'uz2m', 'uxuym',
               'rhom', 'rhomin', 'rhomax', 'vpxm', 'xpm', 'xp2m', 'zpm', 'zp2m',
               'npmax', 'rhopm', 'rhopmax', 'nparsink', 'rhopinterp']
    df = pd.read_csv(filepath, delim_whitespace=True, names=columns, low_memory=False)
    return df['t'].values / (np.pi * 2), df['nparsink'].values

# We saved 101 snapshots, after each orbit
orbits = np.arange(0, 101, 1)

# Load the max particle densities per-species that was saved during analysis
max_density_10au = np.loadtxt('analysis/max_densities_10au.txt')
max_density_30au = np.loadtxt('analysis/max_densities_30au.txt')
max_density_100au = np.loadtxt('analysis/max_densities_100au.txt')

# Concat max particle density data into one array for convenience
max_density_data = np.c_[max_density_10au, max_density_30au, max_density_100au]

num_species10 = np.loadtxt('analysis/num_species_10au.txt')
num_species30 = np.loadtxt('analysis/num_species_30au.txt')
num_species100 = np.loadtxt('analysis/num_species_100au.txt')

# The mass in the simulation and that of the planetesimals is independent of the RT results, just use band1/scattering results here
proto_10, cube_10 = load_mass_data('analysis/polydisperse/band1/scattering/10au/')
proto_30, cube_30 = load_mass_data('analysis/polydisperse/band1/scattering/30au/')
proto_100, cube_100 = load_mass_data('analysis/polydisperse/band1/scattering/100au/')

# The time series data from simulations (Pencil Code)
ts_10, sink_10 = load_time_series('pencil_data_10au/time_series.dat')
ts_30, sink_30 = load_time_series('pencil_data_30au/time_series.dat')
ts_100, sink_100 = load_time_series('pencil_data_100au/time_series.dat')

# Max densities per location
maxes = np.split(max_density_data, 3, axis=1)
maxes_10, maxes_30, maxes_100 = [np.split(m, 4, axis=1) for m in maxes]

locations = {
    '10 au': {'maxes': maxes_10, 'roche': 1663.97, 'offset': 172, 'proto': proto_10, 'cube': cube_10, 'ts': ts_10, 'sink': sink_10, 'species': num_species10.T},
    '30 au': {'maxes': maxes_30, 'roche': 811.52, 'offset': 80, 'proto': proto_30, 'cube': cube_30, 'ts': ts_30, 'sink': sink_30, 'species': num_species30.T},
    '100 au': {'maxes': maxes_100, 'roche': 433.66, 'offset': 45, 'proto': proto_100, 'cube': cube_100, 'ts': ts_100, 'sink': sink_100, 'species': num_species100.T},
}

colors = ['#1f77b4', '#ff7f0e', '#2ca02c', '#d62728']
linestyles = ['-', '--', '-.', ':']
labels = ['1.2 cm', '0.36 cm', '0.12 cm', '0.036 cm']

# Plot
fig, axes = plt.subplots(4, 3, figsize=(24, 24), sharex='col')
plt.subplots_adjust(wspace=0.4)

for col, (loc, data) in enumerate(locations.items()):
    # Row 1: Max Density
    ax = axes[0, col]
    for i in range(4):
        ax.plot(orbits, data['maxes'][i], color=colors[i], linestyle=linestyles[i], alpha=0.7)
    ax.axhline(y=data['roche'], linestyle=(0, (1, 10)), linewidth=3.0, color='k')
    ax.text(41, data['roche'] + data['offset'], r'2$\rho_H$', color='k')
    ax.set_yscale('log')
    ax.set_xlim(0, 100)
    ax.set_ylim(8, 3000)
    if col == 0:
        ax.set_ylabel(r'$\rho_{d,\max} / \rho_{d,0}$')
    ax.set_title(loc)
    ax.tick_params(labelbottom=False)

    # Row 2: Particle Fractions
    ax = axes[1, col]
    for i in range(4):
        ax.plot(orbits, data['species'][i]/250000, color=colors[i], linestyle=linestyles[i], alpha=0.7)
    ax.set_ylim(0.15, 1.0073)
    if col == 0:
        ax.set_ylabel('Fraction of Superparticles')
    ax.tick_params(labelbottom=False)

    # Row 3: Number of Planetesimals
    ax = axes[2, col]
    ax.plot(data['ts'], data['sink'], color='k')
    ax.set_ylim(-0.09, 30)
    if col == 0:
        ax.set_ylabel(r'$\# \text{ of Planetesimals}$')
    ax.tick_params(labelbottom=False)

    # Row 4: Masses
    ax = axes[3, col]
    mass_Earth = data['proto'] / const.M_earth.cgs.value
    ax.plot(orbits, mass_Earth / 1e-6, color='k', linestyle='-')
    ax.set_xlim(0, 100)
    ax.set_ylim(bottom=0)
    ax.set_xlabel(r'$t / P$')
    if col == 0:
        ax.set_ylabel(r'Planetes. Mass ($10^{-6} M_{\oplus}$)')
    ax_twin = ax.twinx()
    dust_mass_frac = (data['cube'] - data['proto']) / (data['cube'][0] - data['proto'][0])
    ax_twin.plot(orbits, dust_mass_frac, color='k', linestyle='--')
    ax_twin.set_ylim(0.9875, 1.0001)
    if col == 2:
        ax_twin.set_ylabel('Fraction of Free Dust Mass')
        ax_twin.plot([], [], 'k-', label='Planetes. Mass')
        ax_twin.plot([], [], 'k--', label='Frac. of Dust Mass')
        ax_twin.legend(loc='center', handlelength=1.5, frameon=True, fancybox=True)

# Legend (grain sizes)
size_handles = [Line2D([0], [0], color=colors[i], linestyle=linestyles[i], label=label) for i, label in enumerate(labels)]
fig.legend(handles=size_handles, loc='upper center', title=r'$a$', frameon=True, fancybox=True, ncol=4, bbox_to_anchor=(0.5, 0.97))

fig.suptitle('Self-Gravitating Streaming Instability Simulations', y=0.985)
plt.savefig('Simulation_Time_Evolution.png', dpi=300, bbox_inches='tight')
plt.show()

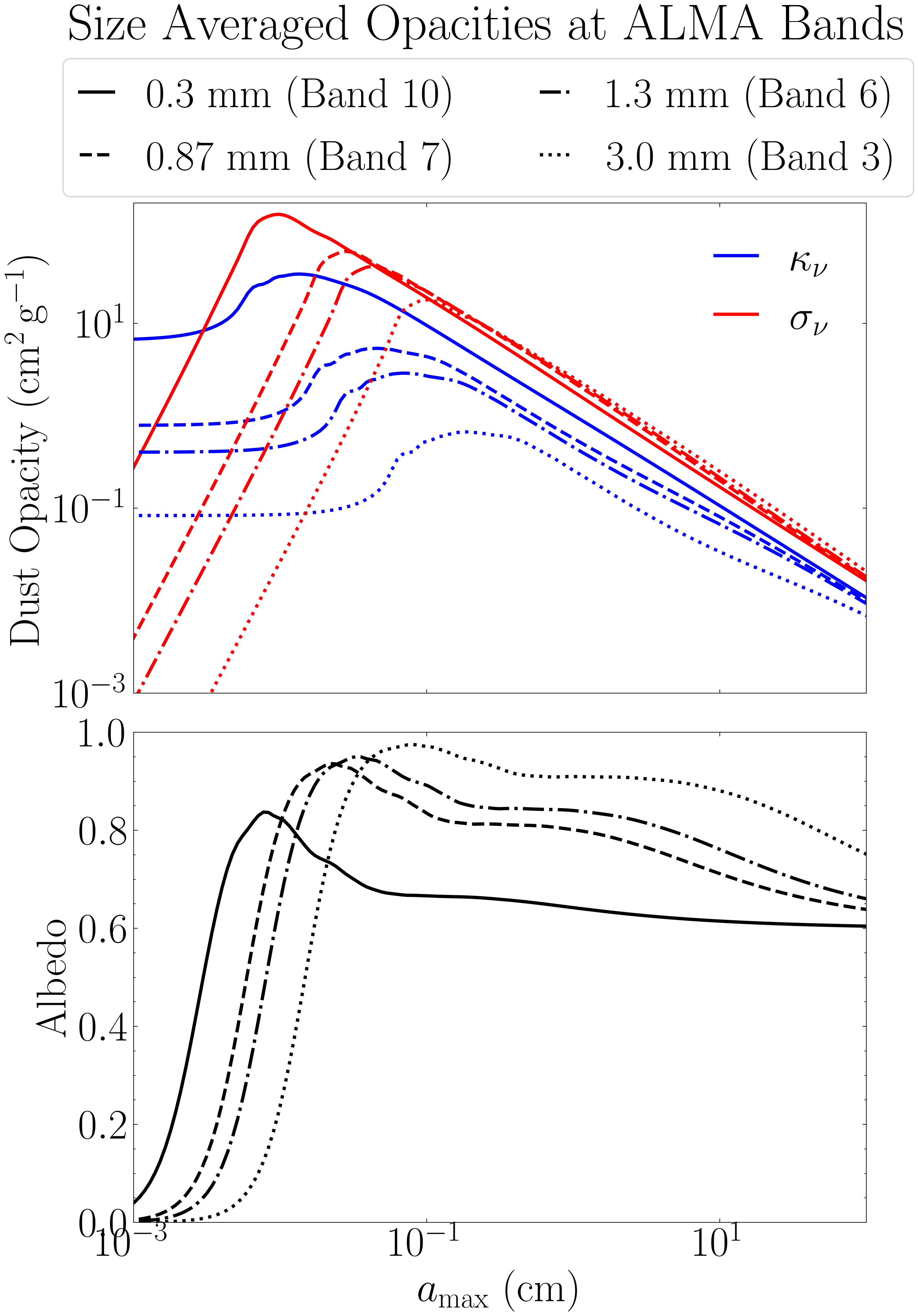

Figure 4 - Frequency-dependent Dust Opacities

This shows how we calculated the DSHARP opacities for the full grain size distribution, at the four ALMA bands used in the radiative transfer analysis. This was done using the compute_opacities module.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
from protoRT import compute_opacities

try:
    import scienceplots
    plt.style.use('science')
    plt.rcParams.update({'font.size': 32, 'lines.linewidth': 2.5})
except:
    print('WARNING: Could not import scienceplots, please install via pip for p\
roper figure formatting.')
    plt.style.use('default')


# The four ALMA bands in our analysis and respective linestyle used
alma_wavelengths_cm = [0.03, 0.087, 0.13, 0.3]
linestyles = ['-', '--', '-.', ':']

# The full range of grain sizes from the DHSARP dust model
reference_grain = np.logspace(-5, 2, 200)

# Power-law index of grain size distribution
p = 2.5

# Full grain size distribution opacities
fig1, ax1 = plt.subplots(nrows=2, ncols=1, figsize=(10, 14), sharex=True)
fig1.suptitle('Size Averaged Opacities at ALMA Bands', y=1.03)

# Compute and Plot the Absorption & Scattering Opacities
for i, lam in enumerate(alma_wavelengths_cm):
    k_abs, k_sca, _ = compute_opacities.dsharp_model(p=p, wavelength=lam, grain_sizes=reference_grain, bin_approx=False)
    ax1[0].loglog(reference_grain, k_abs, linestyle=linestyles[i], color='blue')
    ax1[0].loglog(reference_grain, k_sca, linestyle=linestyles[i], color='red')

ax1[0].plot(1e-6, 0, color='blue', label=r'$\kappa_\nu$')
ax1[0].plot(1e-6, 0, color='red', label=r'$\sigma_\nu$')
ax1[0].set_ylabel(r'Dust Opacity ($\rm cm^2\,g^{-1}$)')
ax1[0].set_xlim(1e-3, 1e2)
ax1[0].set_ylim(1e-3, 200)
ax1[0].legend(loc='upper right', frameon=False, fancybox=True, handlelength=1.0)

# Corresponding Albedos
bands = [10, 7, 6, 3]
for i, lam in enumerate(alma_wavelengths_cm):
    k_abs, k_sca, _ = compute_opacities.dsharp_model(p=p, wavelength=lam, grain_sizes=reference_grain, bin_approx=False)
    albedo = k_sca / (k_abs + k_sca)
    ax1[1].plot(reference_grain, albedo, linestyle=linestyles[i], color='k')
    ax1[1].plot(1e-6, 0, linestyle=linestyles[i], color='k', label=f'{np.round(lam*10,3)} mm (Band {bands[i]})')

ax1[1].set_ylabel('Albedo')
ax1[1].set_xscale('log')
ax1[1].set_xlim(1e-3, 1e2)
ax1[1].set_ylim(0, 1)
ax1[1].set_xlabel(r'$a_{\rm max}$ (cm)')

lines, labels = ax1[1].get_legend_handles_labels()
fig1.legend(lines, labels, loc='upper center', ncol=2,
            frameon=True, fancybox=True, handlelength=0.8, bbox_to_anchor=(0.5, 1.005))

fig1.subplots_adjust(hspace=0.08)
fig1.savefig('full_dsharp_opacities.png', dpi=300, bbox_inches='tight')
plt.close(fig1)

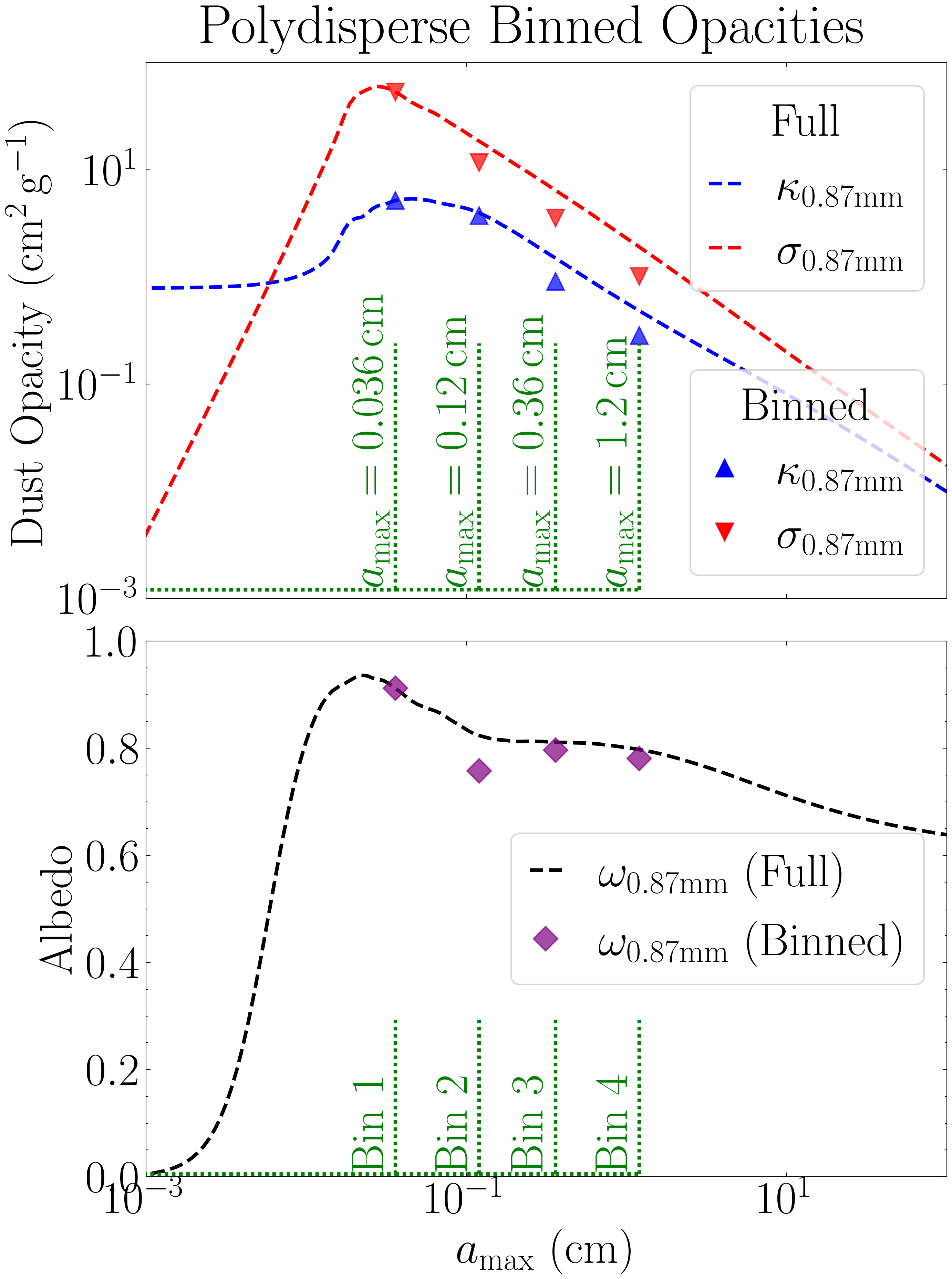

Figure 5 - Multi-Species Binned Opacities

The compute_opacities module also supports multi-species-based opacity calculations. In these cases, the grain size distributions must be binned according to the species. The size of each species corresponds to the maximum grain size in a single distribution, thus the minimum grain size must be set so as to avoid overlapping distributions. The code below shows these binned opacities for ALMA Band 7, and how they compare to that from the full grain size distribution. Using the full grain size distribution in multi-species models results in opacity overestimates, as the opacities from the smaller grains ends up contributing multiple times effectively overestimating the volume density of these smaller grains.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
from protoRT import compute_opacities

try:
    import scienceplots
    plt.style.use('science')
    plt.rcParams.update({'font.size': 32, 'lines.linewidth': 2.5})
except:
    print('WARNING: Could not import scienceplots, please install via pip for p\
roper figure formatting.')
    plt.style.use('default')


# The four grain sizes in our simulations, used to bin the distributions
grain_sizes = [0.036, 0.12, 0.36, 1.2]

# The full range of grain sizes from the DHSARP dust model
reference_grain = np.logspace(-5, 2, 200)

# Power-law index of grain size distribution
p = 2.5

# Compute the binned and full opacities for 0.087 cm wavelength
opacity_abs_full, opacity_sca_full, _ = compute_opacities.dsharp_model(p=p, wavelength=0.087, grain_sizes=reference_grain, bin_approx=False)
opacity_abs_binned, opacity_sca_binned, bins = compute_opacities.dsharp_model(p=p, wavelength=0.087, grain_sizes=grain_sizes, bin_approx=True)

# Calculate the respective albedos
albedo_full = opacity_sca_full / (opacity_abs_full + opacity_sca_full)
albedo_binned = opacity_sca_binned / (opacity_abs_binned + opacity_sca_binned)

# Full vs Binned Opacities Plot
fig2, ax2 = plt.subplots(nrows=2, ncols=1, figsize=(10, 14), sharex=True)
fig2.suptitle('Polydisperse Binned Opacities', y=0.92)

ax2[0].loglog(reference_grain, opacity_abs_full, color='blue', linestyle='--')
ax2[0].loglog(reference_grain, opacity_sca_full, color='red', linestyle='--')
ax2[0].loglog(grain_sizes, opacity_abs_binned, color='blue', marker='^', linestyle='', markersize=12, alpha=0.7)
ax2[0].loglog(grain_sizes, opacity_sca_binned, color='red', marker='v', linestyle='', markersize=12, alpha=0.7)
ax2[0].set_ylabel(r'Dust Opacity ($\rm cm^2\,g^{-1}$)')
ax2[0].set_xlim(1e-3, 1e2)
ax2[0].set_ylim(1e-3, 1e2)

# Legends
ax2[0].add_artist(ax2[0].legend(
    handles=[Line2D([], [], color='blue', linestyle='--'),
             Line2D([], [], color='red', linestyle='--')],
    labels=[r'$\kappa_{\rm 0.87mm}$', r'$\sigma_{\rm 0.87mm}$'],
    title='Full', loc='upper right', frameon=True, fancybox=True, handlelength=0.7))
ax2[0].legend(
    handles=[Line2D([], [], color='blue', marker='^', linestyle='', markersize=12),
             Line2D([], [], color='red', marker='v', linestyle='', markersize=12)],
    labels=[r'$\kappa_{\rm 0.87mm}$', r'$\sigma_{\rm 0.87mm}$'],
    title='Binned', loc='lower right', frameon=True, fancybox=True, handlelength=0.7)

# Green bin guides
ax2[0].vlines(1.02e-5, 1.2e-3, 0.24, color='green', linestyle=(0, (1, 1)))
for i, gsize in enumerate(grain_sizes):
    ax2[0].loglog(bins[i], [1.2e-3]*len(bins[i]), color='green', linestyle=(0, (1, 1)))
    ax2[0].vlines(gsize, 1.2e-3, 0.24, color='green', linestyle=(0, (1, 1)))
    ax2[0].text(gsize * 0.95, 1.2e-3 * 1.3, rf'$a_{{\max}}={gsize}\,$cm', rotation=90, ha='right', color='green', size=32)

# Plot corresponding Albedos
ax2[1].plot(reference_grain, albedo_full, color='k', linestyle='--', label=r'$\omega_{\rm 0.87mm}$ (Full)')
ax2[1].plot(grain_sizes, albedo_binned, color=(0.5, 0, 0.5), marker='D', linestyle='', markersize=12, alpha=0.7, label=r'$\omega_{\rm 0.87mm}$ (Binned)')
ax2[1].set_xlabel(r'$a_{\rm max}$ (cm)')
ax2[1].set_ylabel('Albedo')
ax2[1].set_xscale('log')
ax2[1].set_xlim(1e-3, 1e2)
ax2[1].set_ylim(0, 1)
ax2[1].legend(loc='center right', frameon=True, fancybox=True, handlelength=0.7)

cc1, cc2 = 0.005, 0.3 # To place the green bins
ax2[1].vlines(1.02e-5, cc1, cc2, color='green', linestyle=(0, (1, 1)))
for i, gsize in enumerate(grain_sizes):
    ax2[1].plot(bins[i], [cc1]*len(bins[i]), color='green', linestyle=(0, (1, 1)))
    ax2[1].vlines(gsize, cc1, cc2, color='green', linestyle=(0, (1, 1)))
    ax2[1].text(gsize * 0.95, cc1 * 5.22, f'Bin {i+1}', rotation=90, ha='right', color='green', size=32)

fig2.subplots_adjust(hspace=0.08)
fig2.savefig('binned_opacities_example.png', dpi=300, bbox_inches='tight')
plt.close(fig2)

Figure 6 - Time Evolution of Dust Distribution

Figure 7 - Optical Depth and Intensity Maps

Figure 8 - Radiative Transfer Results

Figure 9 - Radiative Transfer Results (Absorption Only)
